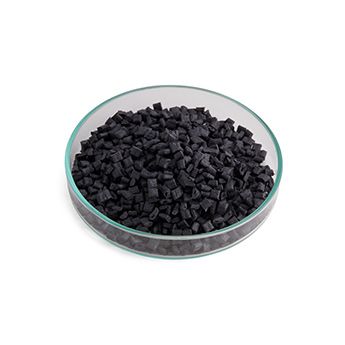

聚苯硫醚, 40%玻璃纤维增强,颗粒, PPS, 40% GFR
产品介绍
| 订货号 | 包装规格 | | Weight | | 004-126-92 | 100g | | 366-259-78 | 200g | | 094-339-20 | 500g | | 254-736-18 | 1000g | | 400-078-87 | 2000g |
产品参数 | Nominal Granule Size[标称颗粒大小] | 3 | | Weight[重量] | 100g - 2000g | | Physical Properties(物理性质) | | Density ( g cm⁻³ ) | 1.660 | | Flammability | V-0 | | Limiting oxygen index ( % ) | 46 | | Radiation resistance | Good | | Resistance to Ultra-violet | Good | | Water absorption - over 24 hours ( % ) | < 0.050 | | Mechanical Properties(机械性能) | | Elongation at break ( % ) | 1.2 | | Hardness - Rockwell | R123 | | Izod impact strength ( J m⁻¹ ) | 75.0 - 80.0 | | Tensile modulus ( GPa ) | 7.60 - 12.00 | | Tensile strength ( MPa ) | 124.00 - 160.00 | | Chemical Resistance(耐化学性) | | Acids - concentrated | Good-Poor | | Acids - dilute | Good | | Alcohols | Good | | Alkalis | Good | | Aromatic hydrocarbons | Good | | Greases and Oils | Good | | Halogenated Hydrocarbons | Good-Poor | | Halogens | Good-Poor | | Ketones | Good | | Thermal Properties(热性能) | | Coefficient of thermal expansion ( x10⁻⁶ K⁻¹ ) | 22.000 - 35.000 | | Heat-deflection temperature - 0.45MPa ( C ) | > 260 | | Heat-deflection temperature - 1.8MPa ( C ) | 240.0 | | Thermal conductivity ( W m⁻¹ K⁻¹ ) | 0.29 - 0.45 @23℃ | | Upper working temperature ( C ) | 200 - 260 | | Electrical Properties(电气特性) | | Dielectric constant @1MHz | 4 - 4 | | Dielectric strength ( kV mm⁻¹ ) | 18.0 | | Dissipation factor @ 1MHz | 0.0013 - 0.0040 | | Surface resistivity ( Ohm/sq ) | 10¹⁶ | | Volume resistivity ( Ohmcm ) | 10¹⁶ |
| |
Goodfellow（顾特服）电话: 点击&查看18024074014地址:
